TP-Link AV1000 Powerline Kit Wi-Fi Extender | WPA7517KITV2

TP-Link AV1000 Powerline Kit Wi-Fi Extender | WPA7517KITV2

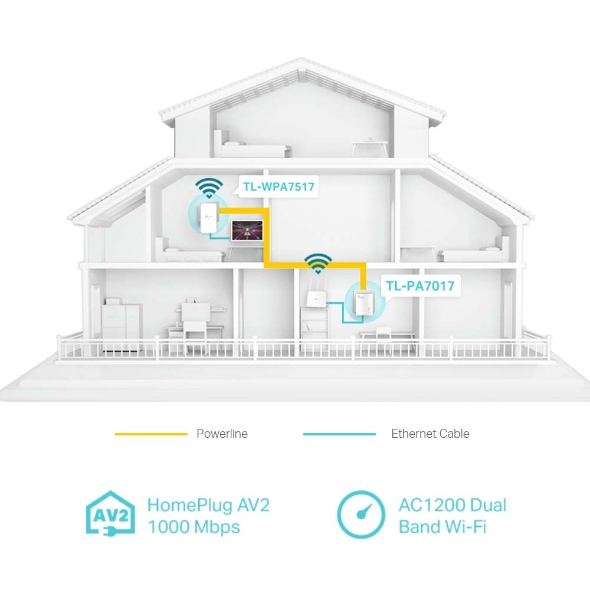

  • Homeplug AV2 standard compliant - Provides users with stable, high-speed data transfer rates of up to 1000 Mbps on a line length of up to 300 meters
  • Dual band 802.11ac Wi-Fi - AC1200 dual band Wi-Fi (867Mbps on 5GHz & 300Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home

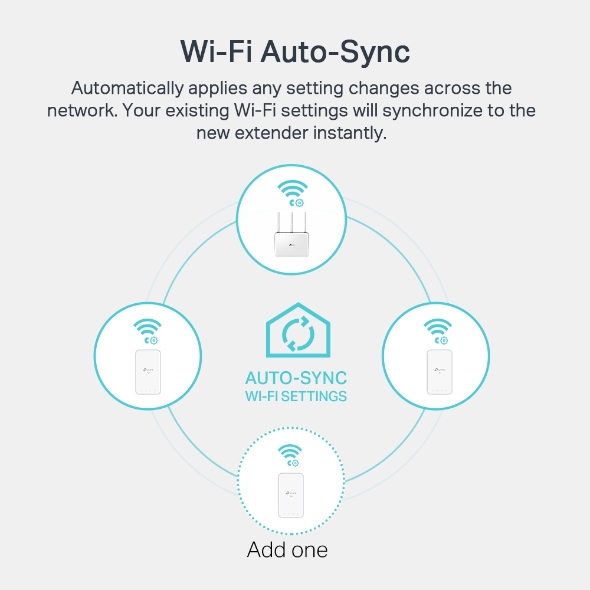

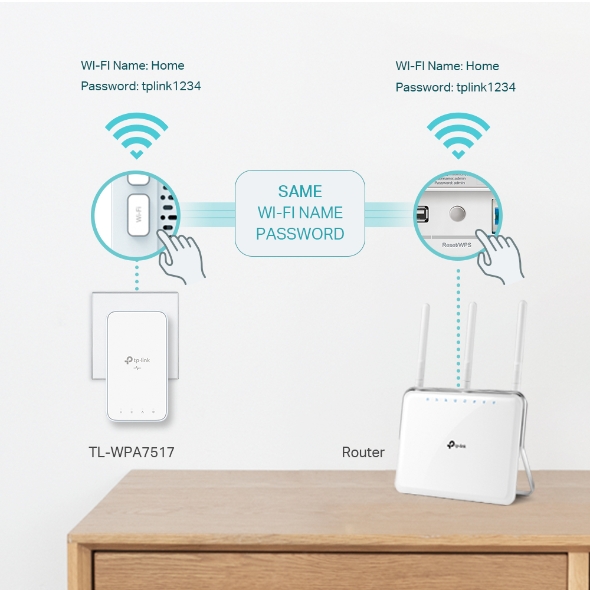

  • Wi-Fi Auto-Sync - Simply copy your router‘s Wi-Fi settings and apply any changes across the secure powerline network with Wi-Fi Clone and Wi-Fi Move

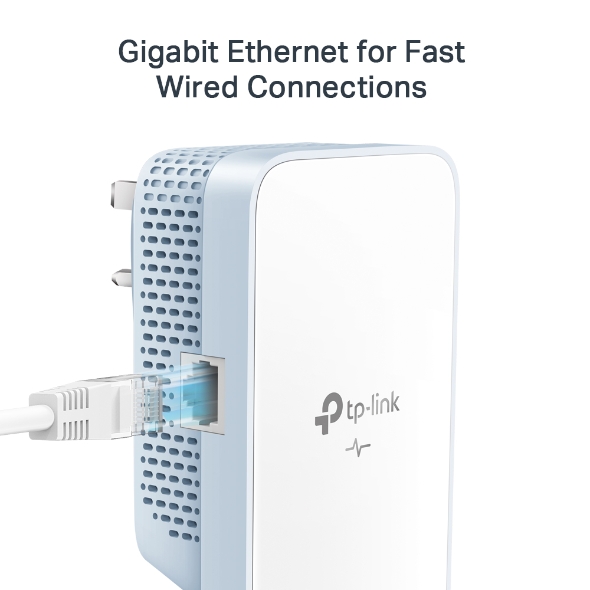

  • Gigabit Ethernet Port - Provide reliable high-speed wired connections for game consoles, smart TVs, and NAS
  • Plug, Pair and Play - Quickly set up a secured Powerline network
  • TP-Link OneMesh™ - Works with your TP-Link OneMesh™ router to form a unified mesh network for seamless streaming while moving around your home

Specifications
HARDWARE FEATURES
Plug TypeEU
Standards and ProtocolsHomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u,
IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)
InterfaceTL-WPA7517: 1 Ethernet Port
TL-PA7017: 1 Ethernet Port
ButtonPair, Reset, Wi-Fi Clone, LED On/Off
Power ConsumptionTL-WPA7517: Maximum: 11W, Typical: 6.5W
TL-PA7017: Maximum: 2.9W, Typical: 2.6W
LED IndicatorPower, Powerline, Ethernet, Wi-Fi (2.4GHz), Wi-Fi (5GHz)
Dimensions ( W x D x H )TL-WPA7517: 2.7 × 1.4 × 4.9 in. (69.5 × 35 × 124.1 mm)
TL-PA7017: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)
RangeUp to 300 meters/1000 feet over existing electrical wiring
CompatibilityCompatible with all HomePlug AV & AV2 standard powerline adapters
Transmission SpeedsPowerline: Up to 1000 Mbps
Ethernet: 10/100/1000 Mbps
WIRELESS FEATURES
Wireless SecurityWPA-PSK / WPA2-PSK, WEP Encrptions
SOFTWARE FEATURES
ManagementtpPLC: Scan the QR code to download TP-Link tpPLC App.
Or download new tpPLC Utility on PCs: www.tp-link.com.
Modulation TechnologyOFDM (PLC)
EncryptionPowerline: 128-bit AES Encryption
Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions
SOFTWARE
OneMesh™OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
OTHERS
CertificationCE, RoHS
Package ContentsAV1000 Powerline Wi-Fi Kit: TL-WPA7517 & TL-PA7017
Ethernet Cable × 2
Quick Installation Guide
System RequirementsWindows 10/8.1/8/7/Vista/XP, Mac OS, Linux
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% non-condensing

*1. Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.

*2. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

*3. Maximum Powerline signal rates are the physical rates derived from HomeplugAV/AV2 specifications. Actual Powerline data throughput and Powerline range are not guaranteed and will vary as a result of network conditions and environmental factors, including electrical interference, volume of traffic and network overhead, AFCI circuit breaker, and Powerline being located in a separate circuit.


TP-Link AV1000 Powerline Kit Wi-Fi Extender | WPA7517KITV2

  • Homeplug AV2 standard compliant - Provides users with stable, high-speed data transfer rates of up to 1000 Mbps on a line length of up to 300 meters
  • Dual band 802.11ac Wi-Fi - AC1200 dual band Wi-Fi (867Mbps on 5GHz & 300Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home
  • Wi-Fi Auto-Sync - Simply copy your router‘s Wi-Fi settings and apply any changes across the secure powerline network with Wi-Fi Clone and Wi-Fi Move
  • Gigabit Ethernet Port - Provide reliable high-speed wired connections for game consoles, smart TVs, and NAS
  • Plug, Pair and Play - Quickly set up a secured Powerline network
  • TP-Link OneMesh™ - Works with your TP-Link OneMesh™ router to form a unified mesh network for seamless streaming while moving around your home

Specifications
HARDWARE FEATURES
Plug TypeEU
Standards and ProtocolsHomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u,
IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)
InterfaceTL-WPA7517: 1 Ethernet Port
TL-PA7017: 1 Ethernet Port
ButtonPair, Reset, Wi-Fi Clone, LED On/Off
Power ConsumptionTL-WPA7517: Maximum: 11W, Typical: 6.5W
TL-PA7017: Maximum: 2.9W, Typical: 2.6W
LED IndicatorPower, Powerline, Ethernet, Wi-Fi (2.4GHz), Wi-Fi (5GHz)
Dimensions ( W x D x H )TL-WPA7517: 2.7 × 1.4 × 4.9 in. (69.5 × 35 × 124.1 mm)
TL-PA7017: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)
RangeUp to 300 meters/1000 feet over existing electrical wiring
CompatibilityCompatible with all HomePlug AV & AV2 standard powerline adapters
Transmission SpeedsPowerline: Up to 1000 Mbps
Ethernet: 10/100/1000 Mbps
WIRELESS FEATURES
Wireless SecurityWPA-PSK / WPA2-PSK, WEP Encrptions
SOFTWARE FEATURES
ManagementtpPLC: Scan the QR code to download TP-Link tpPLC App.
Or download new tpPLC Utility on PCs: www.tp-link.com.
Modulation TechnologyOFDM (PLC)
EncryptionPowerline: 128-bit AES Encryption
Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions
SOFTWARE
OneMesh™OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
OTHERS
CertificationCE, RoHS
Package ContentsAV1000 Powerline Wi-Fi Kit: TL-WPA7517 & TL-PA7017
Ethernet Cable × 2
Quick Installation Guide
System RequirementsWindows 10/8.1/8/7/Vista/XP, Mac OS, Linux
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% non-condensing

*1. Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.

*2. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

*3. Maximum Powerline signal rates are the physical rates derived from HomeplugAV/AV2 specifications. Actual Powerline data throughput and Powerline range are not guaranteed and will vary as a result of network conditions and environmental factors, including electrical interference, volume of traffic and network overhead, AFCI circuit breaker, and Powerline being located in a separate circuit.
