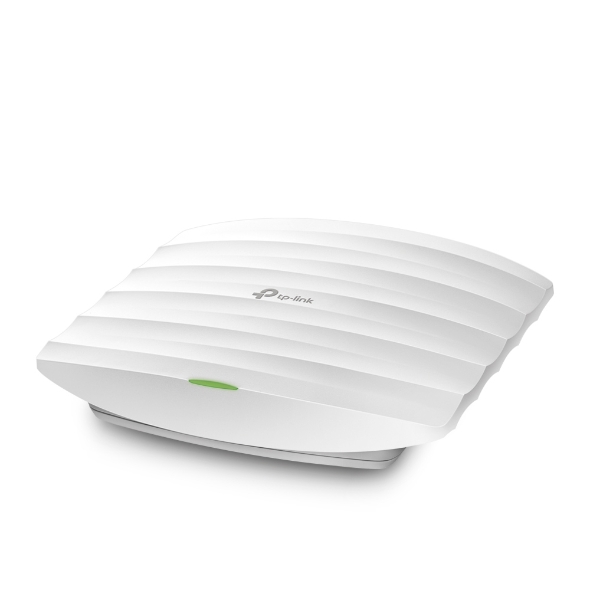

TP Link AC1200 Dual Band Gigabit Ceiling Mount Access Point | EAP225

The TP-Link Omada EAP225 is a ceiling mount dual-band Wi-Fi access point designed to provide robust wireless coverage with a maximum data transfer rate of 1350 Mbit/s. It operates on both 2.4 GHz and 5 GHz frequencies, offering maximum data rates of 450 Mbit/s and 867 Mbit/s respectively. Secure Guest Network helps maintain only authorized guests to use the network. Follow configuration instructions on the free Omada app to get set up in minutes.

Features

• Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds.
• Cloud Service – Remotely manage the whole network from anywhere, at any time.
• Seamless Roaming – 802.1 1k and 802.1 v roaming provide seamless switching to the access point with optimal signal when moving between APs.
• Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections.
• Secure Guest Network – Provide secure Wi-Fi access along with multiple authentication options (SMS/Facebook Wi-Fi/Voucher, etc) and abundant wireless security technologies.
• Advanced Wireless Tech – Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.
• Scheduling – Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.

Specification

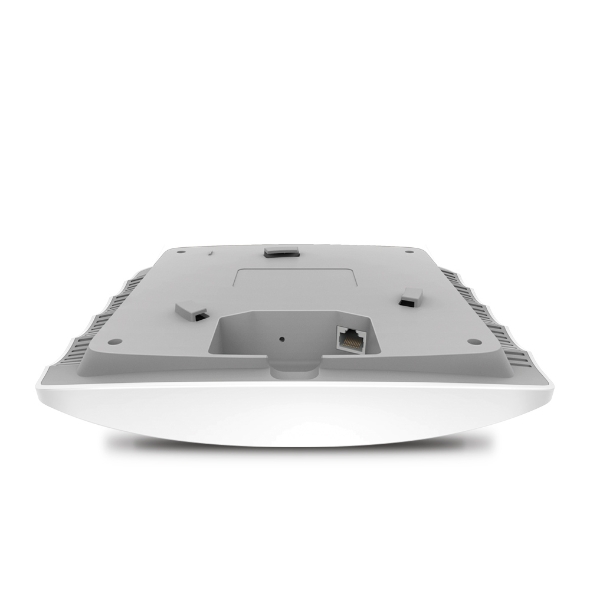

• Interface: Gigabit Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE）
• Physical Security Lock: Yes
• Power Supply: 802.3af/at PoE / 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
• Power Consumption: EU: 10.5 W / US: 12.6W
• Antenna Type: Internal Omni

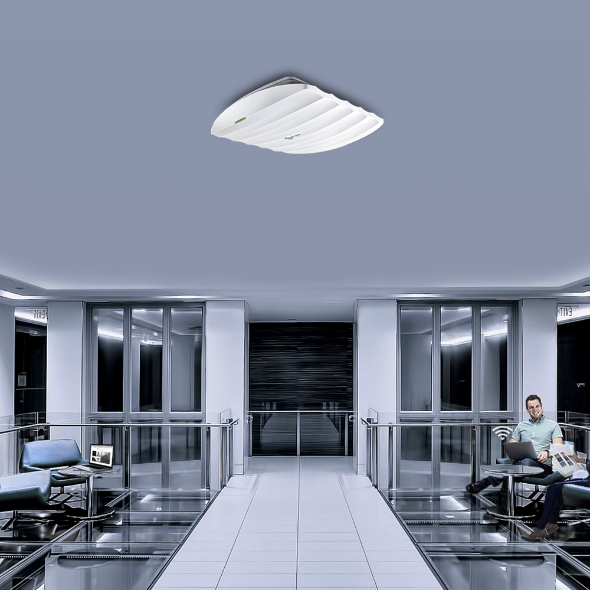

• Mounting: Ceiling /Wall Mounting (Kits included)
• Wireless Standards: IEEE 802.11ac/n/g/b/a
• Frequency: 2.4GHz and 5GHz
• Signal Rate: 5GHz: Up to 867Mbps / 2.4GHz: Up to 300Mbps
• Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support
• App: Yes – Omada App
• Cloud Access: Yes
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1,v2c
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
• Certification: CE, FCC, RoHS
• System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

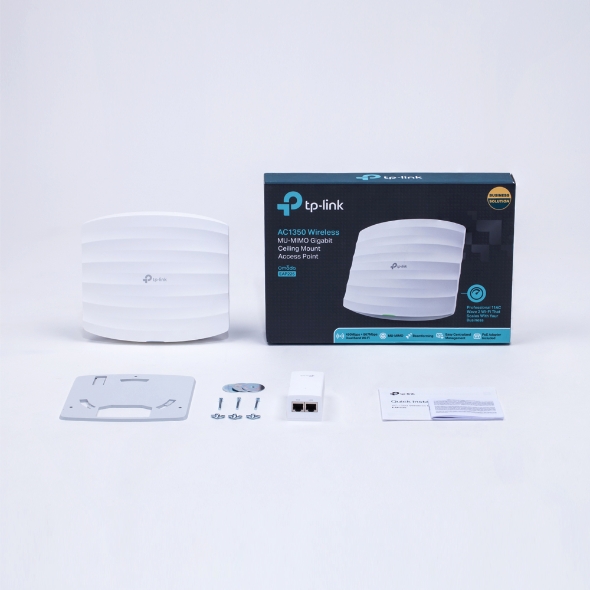

What's in the Box

• AC1200 Dual Band Mount Access Point
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
