TP-Link AC1200 + AV1000 Whole Home Hybrid Mesh Wi-Fi System Deco P9 3-Pack | TL-DECOP9-3PK
TP-Link AC1200 + AV1000 Whole Home Hybrid Mesh Wi-Fi System | DECOP9-3PK
- Wireless class: AC1200 + HomePlug AV1000

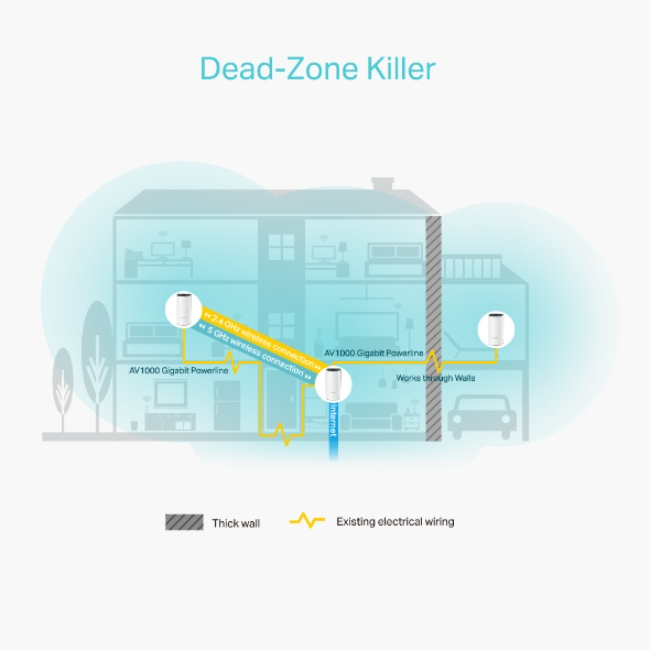

- WiFi + PLC Hybrid Mesh: Hybrid network boosts bandwidth effectively
- With powerline, there is no more walls or distance limits. Enjoy home WiFi everywhere!
- Powerful Processing: Qualcomm Quad-core CPU
- Simple and Smart: Easily setup and manage your network with the Deco app
- Hardware is compatible with Amazon Alexa and IFTTT
- Maximized Range: WiFi coverage up to 6,000 ft2 / 560 m2 (3-pack)
- Supports connection to 100+ devices
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
| Powerline Speeds | HomePlug AV2 1000 Mbps Powerline |
| WiFi Range | 4-6 Bedroom Houses (3-pack)

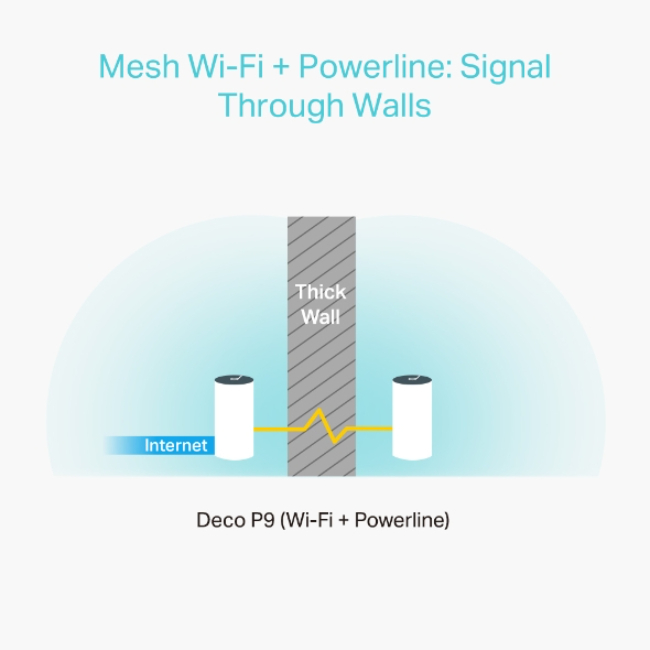

TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage Powerline Technology Uses your home's electrical wiring to create stronger connections between Deco units, reducing the impact of walls or other obstacles on signal 2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity | Medium
Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients |
| Working Modes | Router Mode Access Point Mode |
| HARDWARE | |
|---|---|
| Processor | Qualcomm CPU |
| Ethernet Ports | 2× Gigabit Ports *Per Deco Unit Supports WAN/LAN auto-sensing |
| Buttons | Reset Button |
| Power | 12 V ⎓ 1.5 A |
| SECURITY | |
|---|---|
| WiFi Encryption | WPA WPA2 |
| Network Security | SPI Firewall Access Control |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link |
| Management | Deco App |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 3.6 × 3.6 × 7.5 in (90.7 × 90.7 × 190 mm) |
| Package Contents | Deco P9 (3-pack) 3 Deco P9 Units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation GuideDeco P9 (2-pack) 2 Deco P9 Units 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation GuideDeco P9 (1-pack) 1 Deco P9 Unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide |
| OTHERS | |
|---|---|
| System Requirements | Android 4.4 or later iOS 9.0 or later |
| Certifications | CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Maximum Powerline signal rates are the physical rates derived from HomeplugAV/AV2 specifications. Actual Powerline data throughput and Powerline range are not guaranteed and will vary as a result of network conditions and environmental factors, including electrical interference, volume of traffic and network overhead, AFCI circuit breaker, and whether Powerline is located on a separate circuit.
△Seamless roaming requires that clients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device.
