Tp Link 5-Port Gigabit Desktop PoE Switch with 4-Port PoE+ | SG1005P
The TL-SG1005P is a compact 5 port unmanaged desktop switch, ideal for expanding your home of office network. The switch provides four IEEE 802.3af/at PoE+ enabled ports that support power and data over a single cable with 65W total power budget. The switch is built with plug & play simplicity in mind and the intelligent power management will automatically protect your devices in the event of excess power draw.
Features

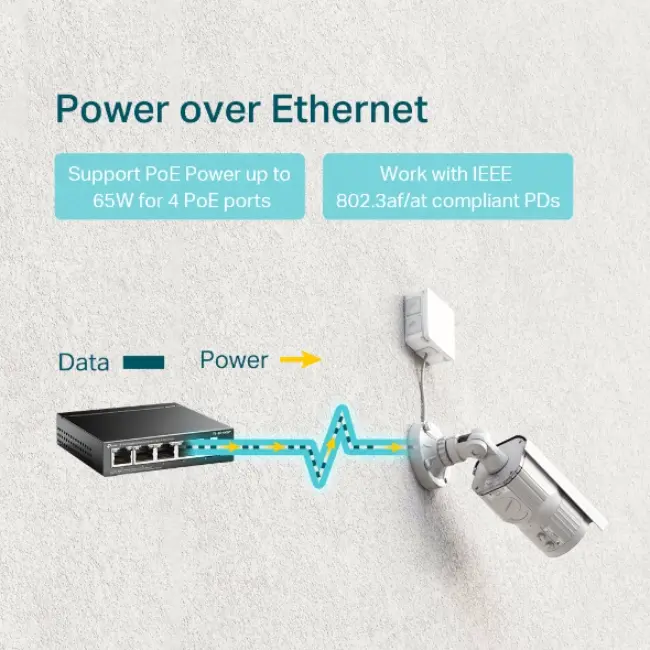

- With 4 PoE+ ports, transfers data and power on one single cable.
- Compatible with IP cameras, access points, IP phones, computers, printers, and more.

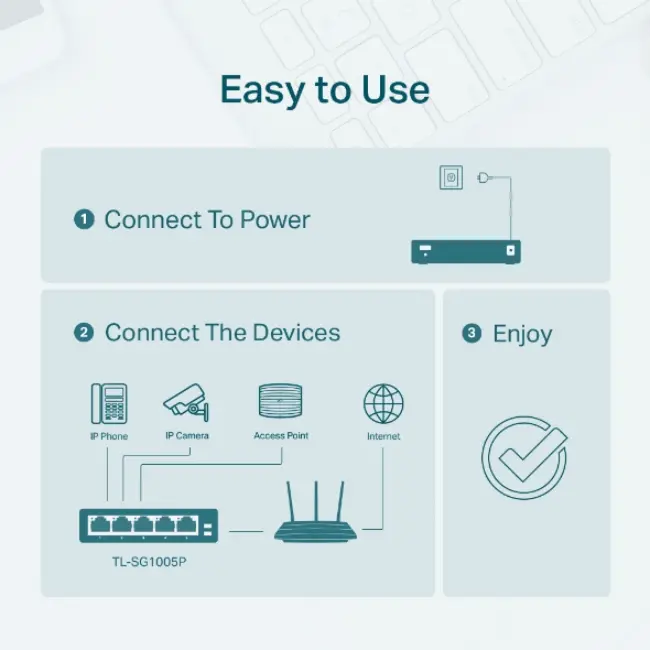

- Plug and Play – no configuration required.

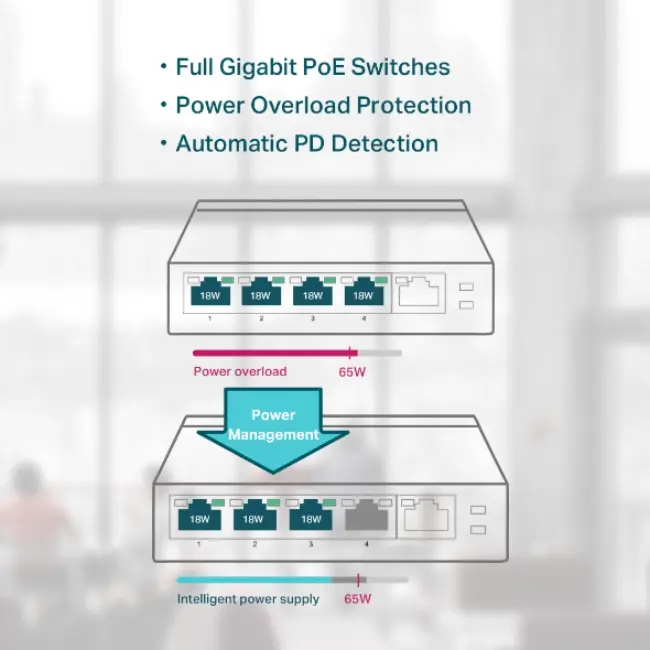

- Intelligent Power Management - Ensures the high priority port’s power supply and protects the device from power overload.
- Durable Metal Casing - The interior components of TL-SG1005P are protected by high-quality metal.
- QoS - For fluent online experience.
- IGMP Snooping – Traffic optimization for IPTV.
Specification
- Interface: 5× 10/100/1000Mbps RJ45 Ports / AUTO Negotiation / AUTO MDI/MDIX
- External Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)
- Packet Forwarding Rate: 7.44 Mpps
- PoE Ports (RJ45): Standard: 802.3 af/at compliant / PoE Ports: Ports 1–4
- Power Supply: 65 W
- Switching Capacity: 10 Gbps
- Dimensions ( W x D x H ): 3.9×3.9×1.0 in (99.8×98×25 mm)
- Advanced Features: IEEE 802.3x Flow Control / 802.1p/DSCP QoS / IGMP Snooping
- Compatible With: IEEE 802.3af/at Compliant PDs
- Certification: FCC, CE, RoHS
What's in the Box
- TL-SG1005P
- Power Adapter
- Installation Guide
